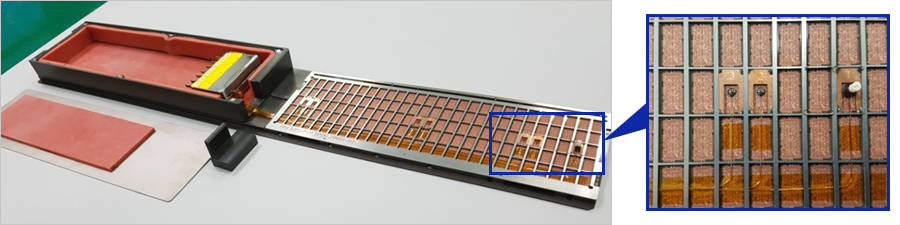

Reflow Type Development of Temperature Measurement Equipment

• - PCB assembly for temperature measurement with pattern parts for multiple temperature measurements
• - Reflow type temperature measuring device with integrated line connecting individual connection lines

Effect

• - Improves the coat of wire with polyimide coating material to prevent particles from occurring
• - Integrated connector type fixed to PCB for ease of use and durability

TC Point (service temperature ~250℃)

• - Measure temp point : Bond each point to fix side temperature points
     (Gain reproducibility and accurately measure temperature)
• - Press and hold the temperature so that the temperature point is fixed to the floor to stabilize the temperature
