ASTEMP

Category	Basic Type	Re-Chargeable Type	Wireless Type
	All Lead wire Type	All Lead wire Type	Data Transfer : Wireless-Wifi
Model	ASTM20-01	ASTM20-02	ASTM20-02W
Shape
Spec.	AC Voltage driving Input 64 Ch. Max.	DC-Battery drive 1-time charging - 12Hrs Charge Residual Valtage and Analog Display Input 64 Ch. Max.	AC Voltage drive Wifi ↔ Notebook Lan line → Office Monitor 16 Ch. / 1-Module → 1 Module sequential linkage drive
Structure diagram

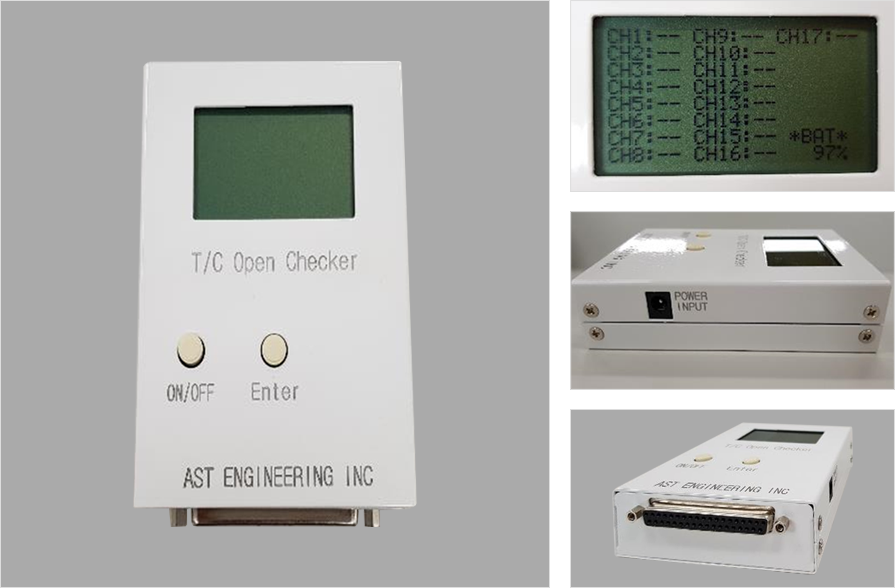

T/C Wafer Open Checker [Model : TW-OCR-017]

Summary

This device can detect a disconnected T/C Point by inspection the disconnection of the TC Wafer.

Functions & definitions

- Status display function
· Current status display function through LCD
· Simultaneous indication function for 17-ch cable disconnection
· Battery level indication function

- Built-in battery function
· With built-in battery, it can be used after charging
· Can be used even when the adapter(5V 0.5A) is connected

Specifications

- MCU
· ATMEGA 2560V
· AVR AVR® Atmega 8-bit 8MHz Flash Memory 256KB(128K×16) Memory

- Graphic LCD

- D-Sub Connector 37Pin

- Power
· AC Free Voltage to Adapter DC 5V Output
· Internal 3.3V used
· Size
· Weight
